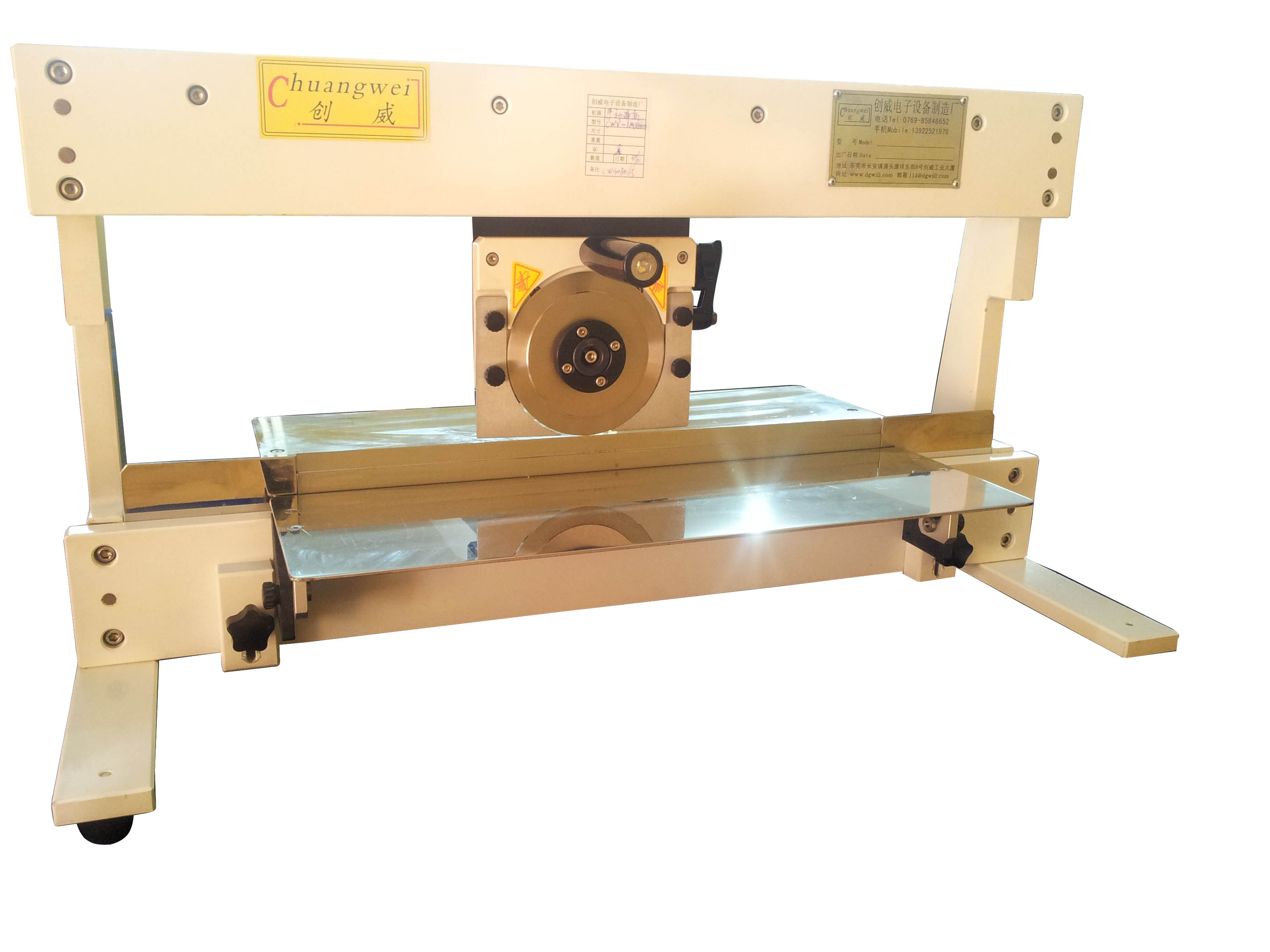

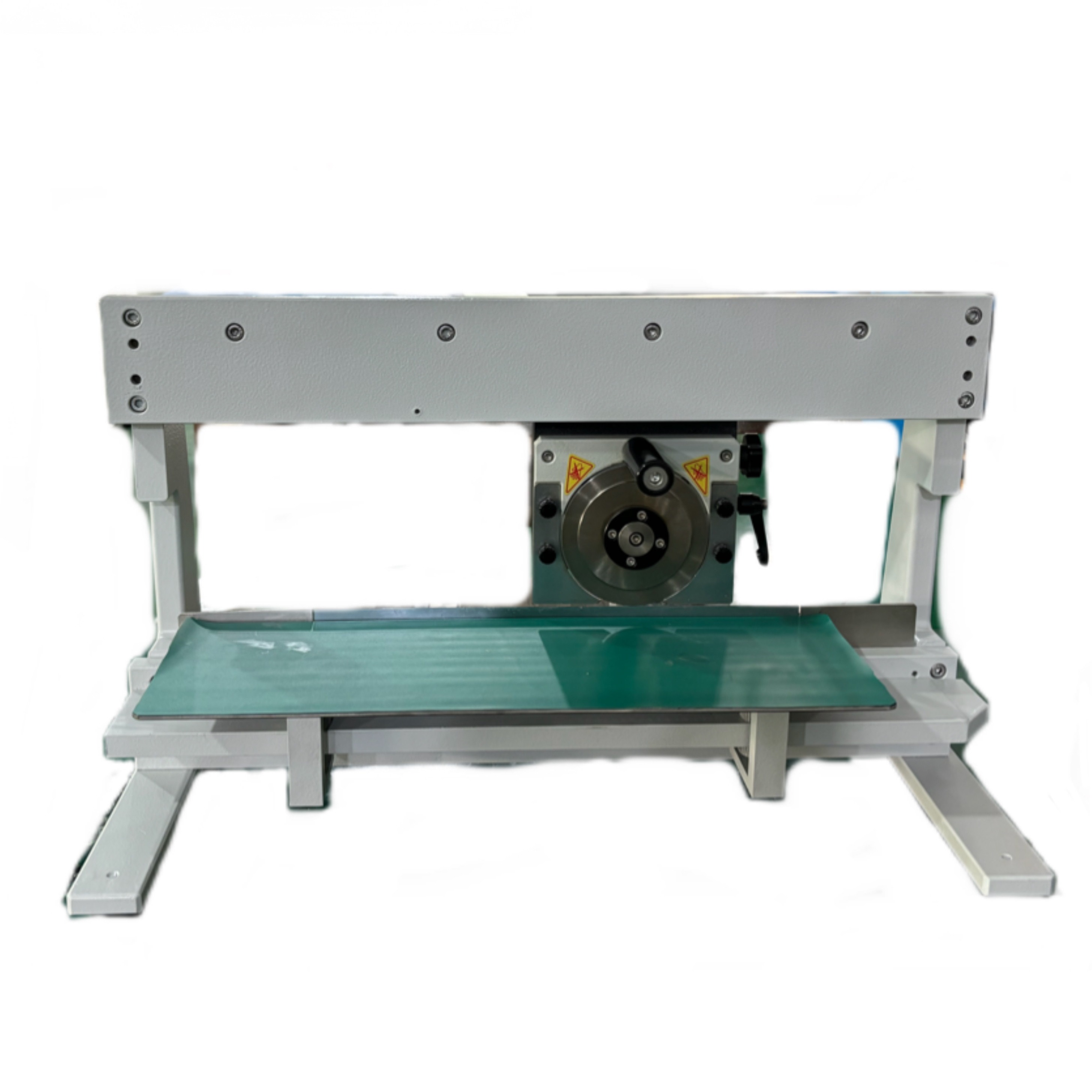

PCB Boards Machine With Circular / Linear Blade Separation 460mm Length Pcb

Descriptions :

1. Depanelization type:upper component side(circular blade),bottom solder side(linear blade).
2. Depanelization for small and large PCB with pre-scored V groove.
3. Depaneling pre-scored V groove PCB assembly without stress on either PCB or component.
4. Depaneling speed is controlled by hand and very easy operation.
5. Large stainless steel platform on both side of cutting blade prevents PCB shaking and the table height and angle could be adjustable.

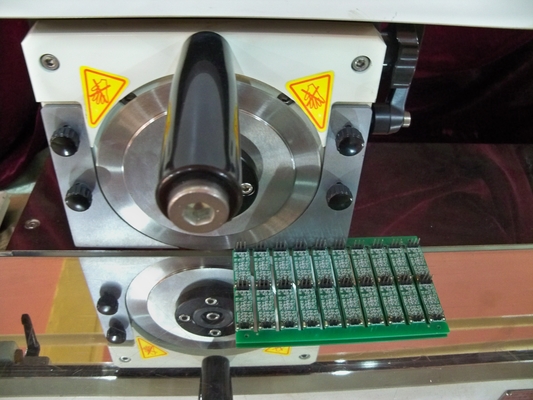

6. The PCB is placed with its pre-scored V groove onto the linear blade and the circular blade is then drawn by hand across the PCB.
7. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.It is to ensure that the PCB is only depaneled in the pre-scored V groove.


Please Kindly See Video By Following Link:

http://www.youtube.com/watch?v=WRe8X6ZbNPc
http://v.youku.com/v_show/id_XNTkwMTI2MTg4.html


Company Information:

From 1999 we started to development , manufacture , sale , service for PCB depanelizer machine , until now, we have produced different kind PCB depanelizer machine type for  manual , motor-driven , pneumatic-driven , mold and die punching , milling cutter router etc .
You can depend on your company's condition and choose the most suitable one.
Also We can manufacture PCB depanelizer machine base your actual requires.
PCB depanelizer machine mainly applies to depanel various shape,length and thickness Printed Circuit Board
(PCB) which include Rigid PCB , Flexible PCB ( FPC )  and Rigid-flex PCB etc . For example electronic and digital products FR4 PCB , FR6 PCB , Aluminium PCB , Copper PCB  LED strips , LED tubes PCB , Solar energy PCB and different FPC etc .


Any interest please contact us freely .
