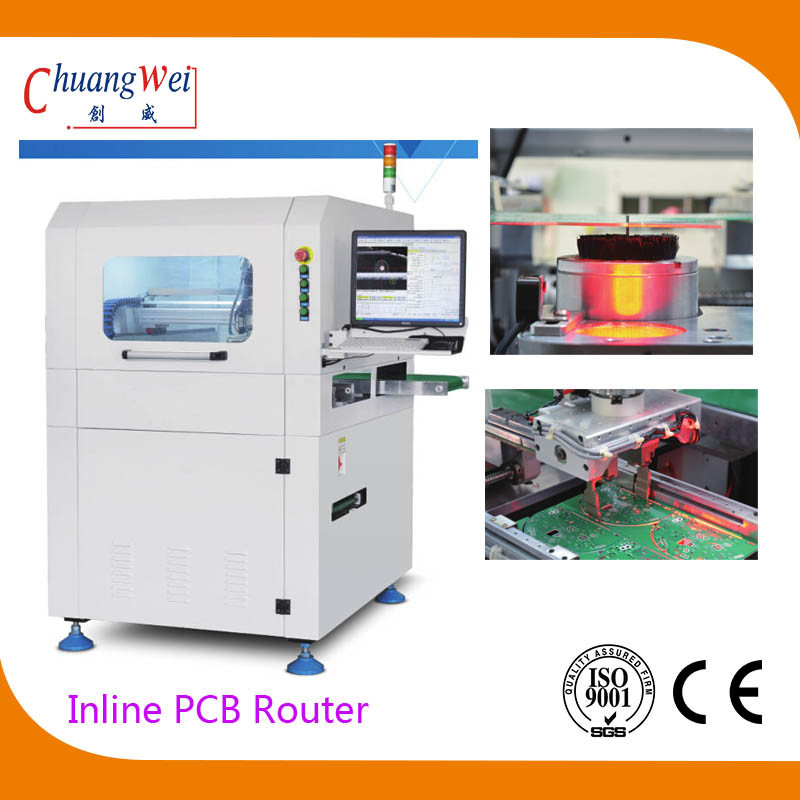

ESD Safe Brush Inline PCB Router PCB Routing with Supper Visual System, CW-F03 Features:
1. Automatic tool change
2. ESD monitoring
3. Cutting stess feedback
4. Automatic production mode
5. Linkage between Spc statistic functionand customer’s management system-ERP
6. Can be equipped with explosion-proof function of vacuum cleaner
Specification:
| Model | CW-F03 |
| Machine Size | 1000*1200*1533mm |
| Weight | Approx 1900kgs |
| Max PCB Size | 350*350mm |
| PCB Thickness | 0.4-6mm |
| Transmission height | 900±50mm |
| Transmission direction | Left -> Right |
| Transmission speed | 1500mm/s(max)/adjustable |
| Feeding plate type | Section-type transportation guide rail |
| Rail width adjustment | Automatic |
| Communication signal of upper and lower computers | SMEMA |
| PCB Positioning | Upper and lower guide rail clamping |
| Picking system | 360°rotary clamping system; 2 groups of vacuum suction nozzles at most, 4 groups of ESD belt transportation/batch panel forwarding units at most |
| Cutting spindl/speed | Germany KAVO, 60,000rpm/min |
| Cooling type | Air compression |
| ESD monitoring | Yes |
| Automatic tool change | Yes |
| Cutting stress feedback | Yes |
| Break blade check | Yes |
| Cutting speed | 1-200mm/s |
| Cutting accuracy | ±0.5mm |
| Repeat positioning accuracy | ±0.01mm |
| Coordinate moving speed | 1000mm/s |
| Out plate type | ESD belt transportation/batch panel forwarding unit |
| Waste collection type | Out off the track |
| Procedure programming | GERBER drawing import/Editing program through visual system |
| Air supply | 5-8kg/cm2 |
| Power supply | AC380V±5%, 50/60Hz, 3KW |
Advantages:
Super Vision System
A precise machine visual system which consists of German imagining industrial camera, Moritex Lens and measurement-level light source; it
supports all functions of machine calibration, compensation and positioning, featuring highstablility and anti-disturbance capacity.
Automatic tool changer
The standard tool changer supports three kinds of 3.175mm tools, each of which has a top loading Capacity of 10 ones. It is combined with precise clamping system and lifting system; three axes -X1,Y1 and Z1 of the cutting mechanism can realize tool changing.
ESD ATPD panel forwarding system
Panel forwarding solution 1: the cut PCB will be delivered by clamping system to belt transmission line, and then sent by ESD transmission line via machine into assembling line, or be picked up and loaded into product case by customized manipulator solution.
Panel forwrding solution 2: use batch panel forwarding unit ARM-1 dismantle belt transmission line from machine, insert panel forwarding unit from behind the machine, and directly load the panel into blister box in ARM-1 via clamping system. The solution is featured By simplicity and convenience.
