High Speed Semi Automatic Router Machine With 60000RPM KAVO Spindle

1 ست
MOQ
Negotiable
قیمت
High Speed Semi Automatic Router Machine With 60000RPM KAVO Spindle
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
وزن دستگاه: 650 کیلوگرم
ضخامت PCB: 0.6-3.0mm
قدرت: 220 / 110V
مواد PCB: FR1 ، FR4 ، MCPCB
دوک: کاوو
منطقه کاری استاندارد: 320 * 320 میلی متر
ضمانتنامه: 1 سال
نام: دستگاه روتر نیمه اتوماتیک
برجسته:

pcb depaneling router,printed circuit board router

,

printed circuit board router

اطلاعات اولیه
محل منبع: دونگ چانگ چین
نام تجاری: chuangwei
گواهی: CE ISO
شماره مدل: CW-F01-S
پرداخت
جزئیات بسته بندی: هر مجموعه در جعبه های کارتن بسته بندی شود
زمان تحویل: 1-3 روز پس از پرداخت تأیید کنید
شرایط پرداخت: T / T ، L / C ، PayPal
قابلیت ارائه: 300 مجموعه در هر ماه
توضیحات محصول

Semi Automatic Router Machine with 60000RPM KAVO Spindle for 0.1mm Resolution





The best sulotion for PCB depaneling

  1. Avoids problems such as the tin break and damage to the compnent caused by manually bending a plate
  2. Avoids the stress produced mechanically by using punch or bending
  3. Suitable for cutting of a circle, arc and line of a finished plate





Rotational speeds adjustable

  1. The spindle head consists pf a high-speed motor and the main shaft, which can be replaced separately to reduce the cost of maintenance
  2. The high-speed spindle uses air radiation to reduce volume
  3. The head of the main shaft is suitable for the milling cutter specially designed for a PCB
  4. The rotational speeds of the main shaft can be adjusted from 2K-60K RPM according to the thickness of PCB



The screen is friendly and can be switches between Chinese and English

  1. Equipped with a build-in image capture, workpiece image and operation on the same screen, easy operation
  2. The function selection, manual function selection and instruction for shift are selected by mouse
  3. Mechanical parameters and function setting can be locked up with a password to avoid operation the equipment accidentally.



Value matching is accurate and instruction is conveniently

  1. During instructing, there are three kinds of speed optional
  2. Cooperating with the monitor, the diameter of a milling cutter, a circle and square frame can be set



Routing bits

(Upper Vacuum Cleaner)Righ-hand specification: ¢0.8, ¢1.0, ¢1.2, ¢1.5, ¢1.8, ¢2.0

(Lower Vacuum Cleaner)Left-hand specification: ¢0.8, ¢1.0, ¢1.2, ¢1.5, ¢1.8, ¢2.0

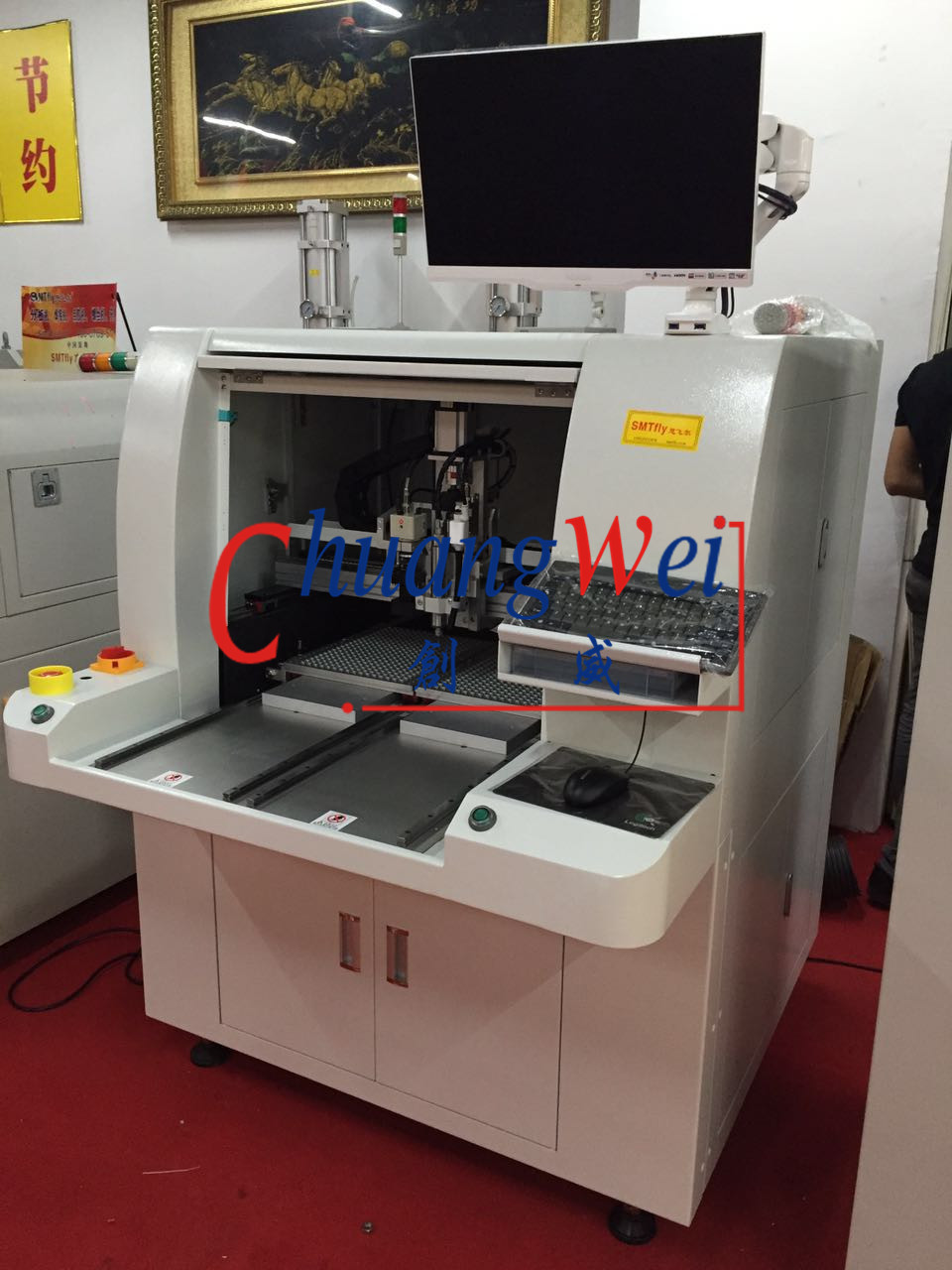

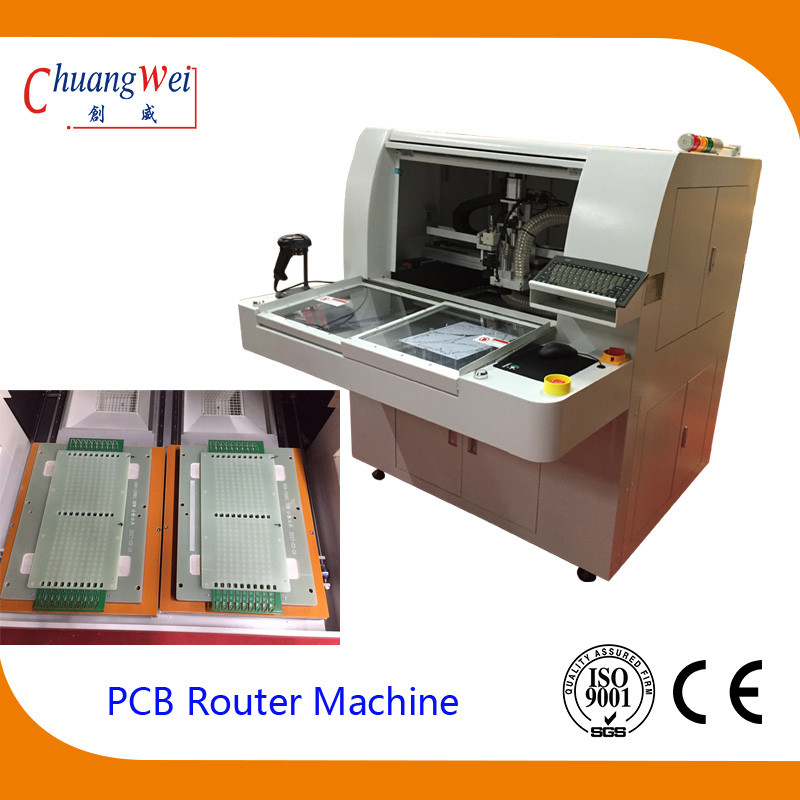

High Speed Semi Automatic Router Machine With 60000RPM KAVO Spindle 0  High Speed Semi Automatic Router Machine With 60000RPM KAVO Spindle 1



Specification

Model CW-F01-S
Standard working area 320*320mm
Power 220V, 4.2KW
Manipulator Repeatability ±0.02mm
Resolution ±0.01mm
Board Positioning Dual workstation with nest fixture or pin fixture
Panel Location Located by tooling holes or edges of PCB
Loading Manual
Unloading Manual
Panel Size 320*320mm(standard)
Panel Thickness 0.5-3.5mm
Spindle motor 0.5kW Morning Star Spindle
Tool Change Manual
Dust filtration system 3KW Vacuum Cleaner
Vision system High resolution CCD video camera
Programming Vision assisted point to point manual teaching
Editing Function Dry run vision assisted / test run mode
Machine weight 650kgs
Machine dimension 113*140*108cm



Our  package :





High Speed Semi Automatic Router Machine With 60000RPM KAVO Spindle 2
